Quick answer: For orchards, vineyards and holdings of 5-25 hectares, a compact tractor in the 30-55 HP band usually earns its keep faster than a 70 HP machine. Choose 45-55 HP if you pull a 1.8 m pickup baler or a two-disc plough, and 30-40 HP for mowing, spraying and yard work. Two numbers decide whether a unit is worth shipping: the PTO speed, because 540 rpm drives most imported implements, and the overall length, because a 3.3 m machine loads three to a 40HQ container while a 4.0 m machine loads two. Confirm both in writing before you pay.
Everything below uses measurements taken from machines currently in stock, so you can check each figure against the unit you are quoted.
What Counts as a Compact Tractor in Export Buying?
In a domestic showroom the word compact usually stops at 40 HP. In the used export trade it stretches to 60 HP, because Chinese stock lists group every small-frame machine together. What matters to an importer is not the label but three numbers: rated power, minimum operating weight, and overall length.

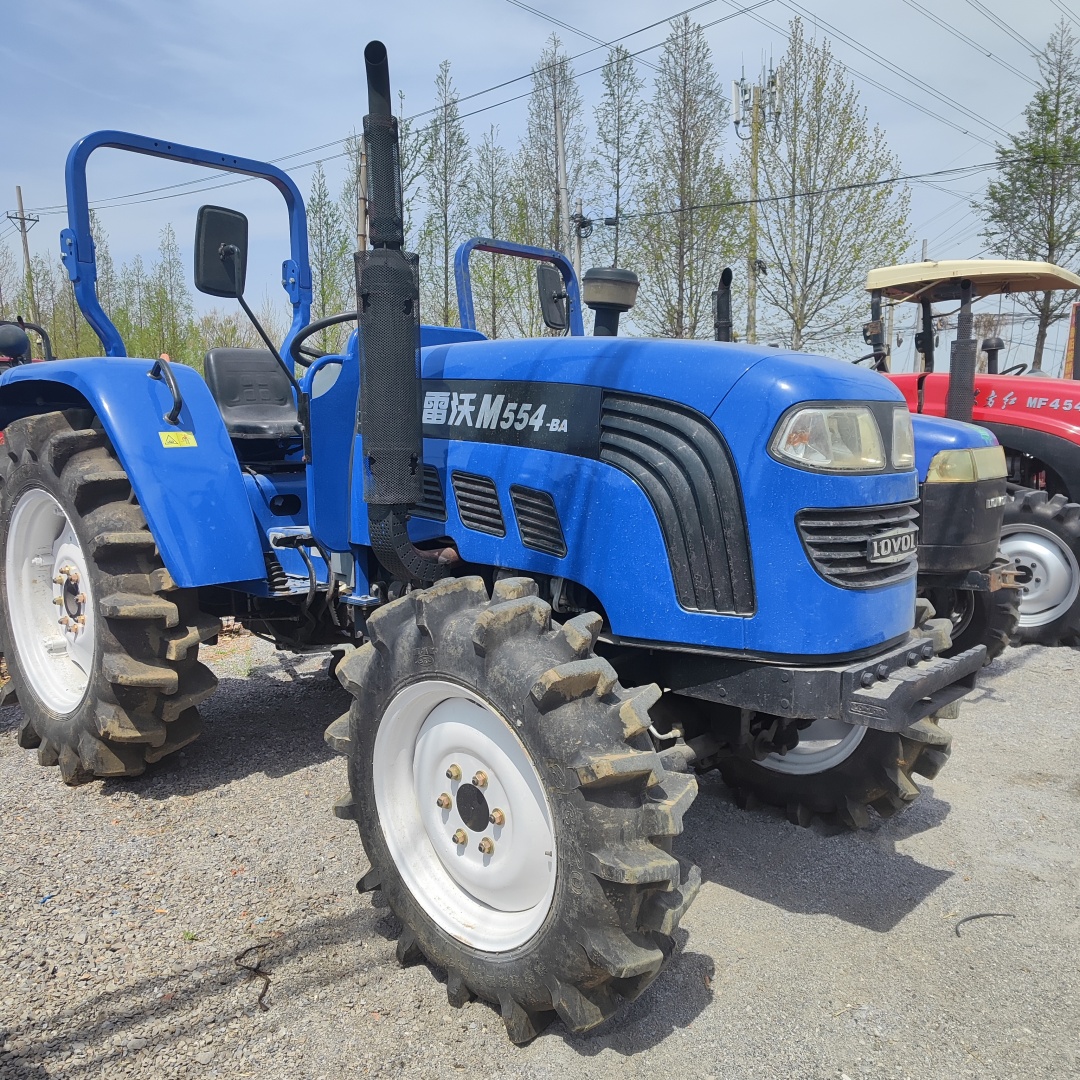

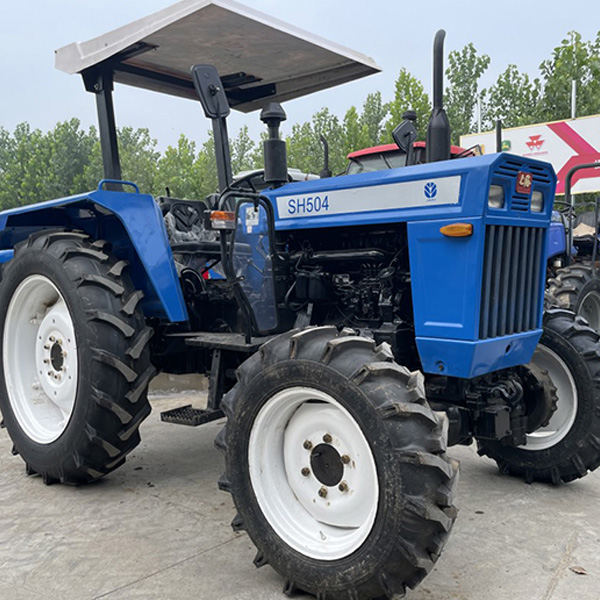

Take two machines we ship regularly. The Lovol M554-BA is rated 40.4 kW (55 HP), runs a 4x4 driveline, weighs 2,360 kg and measures 4,030 x 1,650 x 2,150 mm. The Shanghai SH504 is rated 37 kW (50 HP), also 4WD, weighs 2,370 kg and measures 3,325 x 1,848 x 2,350 mm.
GAMA gmtractor.com
Both are compact by any standard, yet they carry 43 and 47 kg of machine for every horsepower, against 33-39 kg/hp typical of a 70 HP row-crop tractor. That ballast is why a compact tractor pulls above its power rating on a hard, dry field, and why it sinks and smears in a wet paddy unless the tyres are changed.
Compact Tractor PTO Speeds: Why 540 rpm Still Rules
The PTO is where most compact tractor deals go wrong. Small implements built for Europe and Latin America are almost all specified at 540 rpm. A used CLAAS MARKANT 65 baler, for example, asks for 37.3 kW at 540 rpm and comes with a 1.85 m pickup and 36 x 46 cm bales, a classic 50 HP job.
+86 13013532997
The M554-BA ships with a 540/760 two-speed PTO, with 540/1000 and 760/1000 available as options, so it drives that baler directly. The SH504 data plate reads 766 rpm. That figure does not mean the machine cannot run a 540 implement; it means you must confirm in writing which engine speed delivers 540 rpm, how many splines the shaft carries, and which way it turns. Ask for a photo of the PTO nameplate and of the tachometer at 540 before the unit is loaded.
Matching Implements to a 30-55 HP Compact Tractor
Implement weight, not engine power, is what breaks a small machine. Compare three items we supply alongside compact units:
| Implement | Power required | Hitch | Key figure |
|---|---|---|---|

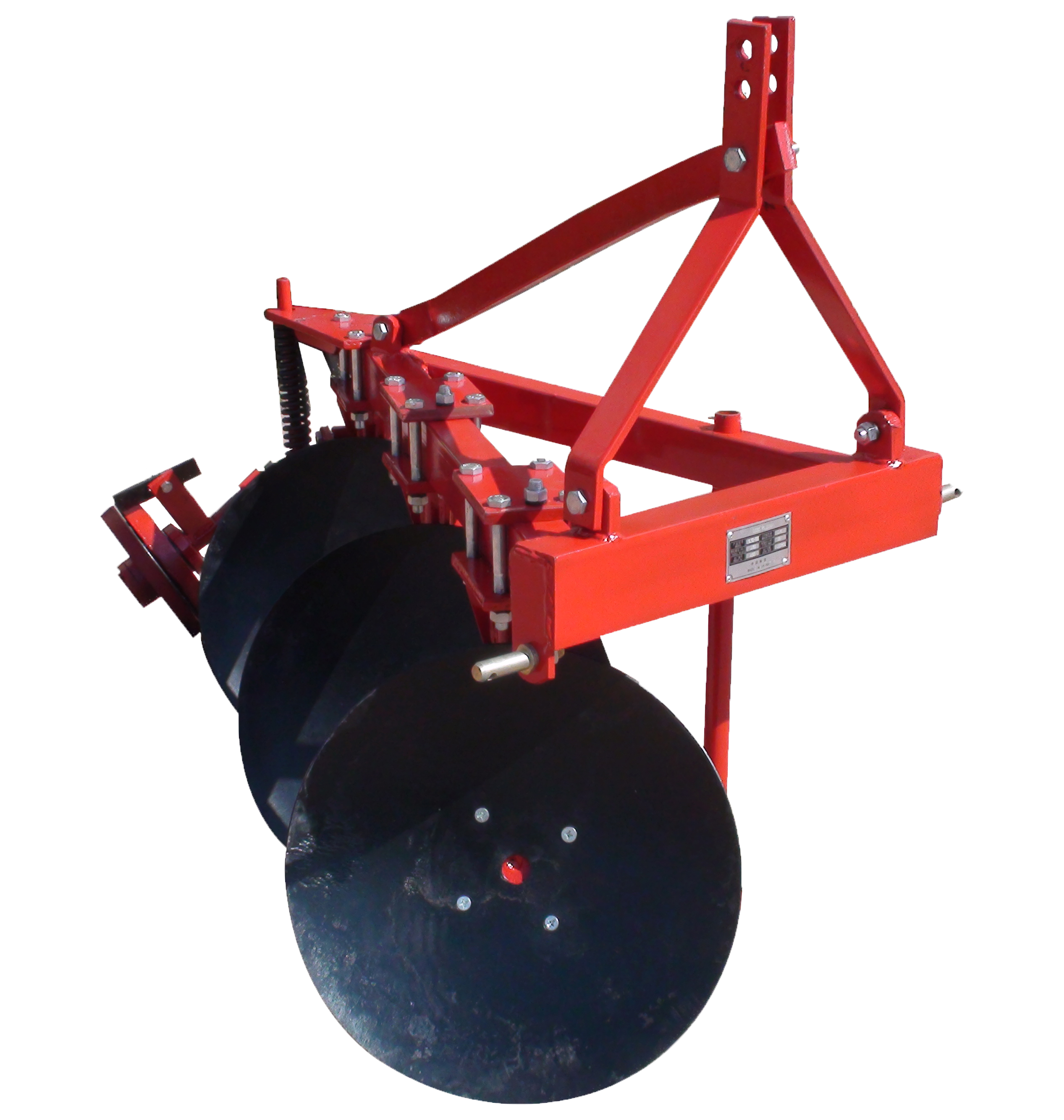

| 1LYQ-220 disc plough | 18 HP | Cat I | 140 kg, 400 mm cut, 2 x 510 mm discs |
| 1LY-325 disc plough | 60 HP | Cat II | 480 kg, 750 mm cut, 250-300 mm depth |
| CLAAS MARKANT 65 baler | 50 HP (37.3 kW) | drawbar, 540 rpm | 1.85 m pickup, 36 x 46 cm bale |
The 140 kg plough is about 6% of the tractor weight; the 480 kg one is a fifth of it, and it needs a Cat II hitch that many compact tractors simply do not have. Hang that much behind a 2,360 kg machine and the front axle unloads unless ballast is added, and the SH504 specification lists front ballast as not fitted with rear ballast optional. Write ballast into the contract, not into an email after loading.
How Many Compact Tractors Fit in One 40HQ?
Freight is where a compact tractor wins. A 40HQ gives roughly 12,032 mm of usable length, 2,352 mm of width and a door opening near 2,580 mm.
- SH504: 2,350 mm high, so it clears the door without dismantling; 1,848 mm wide means a single row; 3,325 mm long means three units nose to tail at 9,975 mm, leaving about two metres for implements and parts.
- M554-BA: 2,150 mm high and 1,650 mm wide, but 4,030 mm long, so three would need 12,090 mm and you ship two.
- A 20GP holds one 50 HP machine, because usable length is only about 5,900 mm.
That is the whole argument: picking a 3.3 m machine over a 4.0 m one can cut landed freight per unit by roughly a third, before duty.
Six Checks Before a Compact Tractor Leaves the Yard
- Hour reading and service history; SH504 stock runs about 800-1,500 hours.
- PTO nameplate: rpm, spline count and rotation, checked against the tachometer.
- Hitch category and lift capacity; the SNH504 is rated at 8 kN.
- Tyres; SH504 ships on dry-field 8.3-20 / 11-32, and paddy tyres must be ordered for rice ground.
- Hydraulic output; optional on the SH504 but essential for a trailer or front loader.
- Ballast and ROPS condition, written into the pro-forma invoice.
FAQ
Is 50 hp enough for a 1.8 m pickup baler?
Yes, provided the PTO delivers 540 rpm. A CLAAS MARKANT 65 needs 37.3 kW at 540 rpm, which a 50 HP machine meets with margin. The risk is speed, not power: on a unit whose plate reads 766 rpm, confirm the 540 setting before shipping.
Can one 40HQ container hold four compact tractors?
Only if each unit is under about 3,000 mm long and 1,150 mm wide, which puts you in the 30 HP class and below. At 50-55 HP expect two to three units, decided by length rather than width.
Linyi Gama Machinery Co., Ltd https://www.gmtractor.com
Sourcing a Compact Tractor From China
Linyi Gama Machinery Co., Ltd holds 30-55 HP compact tractor stock in Linyi City, Shandong Province, China, including the Lovol M554-BA and Shanghai SH504 above, with matched ploughs and balers. Send your HP range, PTO requirement and destination port to Gavin@gamagr.com or call +86 13013532997, and we will return spec sheets, hour readings and a loading plan for your container.
