Quick Answer: A used New Holland 754 tractor is the 75 HP class of the Shanghai New Holland (SNH) range: a 55.1 kW four-cylinder diesel rated at 2,400 rpm, a 10 forward + 2 reverse gearbox, a rear linkage rated at 16 kN and a 783 rpm PTO. In the field that means a 3-furrow mounted plough or a 2.0 m rotary tiller in medium soils, a front loader with a 1.6-1.8 m bucket, and a fuel bill of roughly 9-11 litres per hour in normal drawbar work. Because the SNH4102Z and LR4B3-24 engine platforms are shared across tens of thousands of Chinese-built machines, spare parts stay cheap and available in most importing markets.
Used New Holland 754 Tractor: Core Specifications
Below are the factory figures for the SNH754 chassis. Individual machines vary with hours and rebuild history, but any unit sold as a used New Holland 754 tractor should match this table.
+86 13013532997 Gavin@gamagr.com
gmtractor.com
| Item | SNH754 specification | Why it matters to a buyer |
|---|---|---|
| Engine | SNH4102Z or LR4B3-24, 4-cylinder diesel | Mechanical and non-electronic; a village workshop can repair it |
| Rated power | 55.1 kW (about 74 HP) at 2,400 rpm | Full 75 HP class without a 100 HP purchase price |
| Fuel consumption | 242 g/kW·h or better | About 13.3 kg/h at rated load, 9-11 L/h in typical 60-70% work |
| Torque reserve | 20-22% | Holds engine speed when the plough meets a compacted headland |
| Gearbox | 10 forward + 2 reverse | Enough ratios for tillage, loader duty and road transport |
| Max. lift force | 16 kN (about 1,630 kgf) | Lifts heavy mounted implements without losing steering weight |
| PTO speed | 783 rpm | Chinese-market standard; check imported implements are specified for it |
Stock, running hours and photo sets are listed on the product page for the SNH754 Shanghai New Holland used tractor. Two details matter more than the headline power number: torque reserve of 20-22% is what stops the engine bogging in hard ground, and the 783 rpm PTO is a Chinese-market standard, so check that implements you already own are rated for that speed rather than the 540/1,000 rpm pair used in Europe.
What 55.1 kW and 16 kN of Lift Mean in Real Work
Rated power is measured at the flywheel. After drivetrain losses expect 46-48 kW at the PTO, and that is the figure that sizes your implements:
- Tillage width: 1.8-2.0 m rotary tiller in medium loam, or a 3-furrow (12-14 in) mounted reversible plough, at 6-9 km/h.
- Lift budget: 16 kN is about 1,630 kgf at the link ends. A 2.0 m tiller weighs 550-650 kg and a 3-furrow plough about 700 kg, so both fit with room for ballast.
- Gearing: 10 forward ratios give a usable 2-30 km/h spread. There is no factory creep gear, so slow-speed work needs an aftermarket creeper.
- Fuel: at 242 g/kW·h and 55.1 kW, full-load burn is 13.3 kg/h (about 15.9 L/h); plan on 9-11 L/h for normal ploughing or haulage.
Matching Implements to a 75 HP Chassis
Getting implement size right is where first-time importers lose money: oversize a tiller by 30 cm and the tractor works in the wrong gear all season. This is the pairing we recommend for the SNH754.
| Implement | Recommended size for the SNH754 | Buyer note |
|---|---|---|
| Rotary tiller | 1.8-2.0 m | Order a 6-spline PTO shaft for 783 rpm |

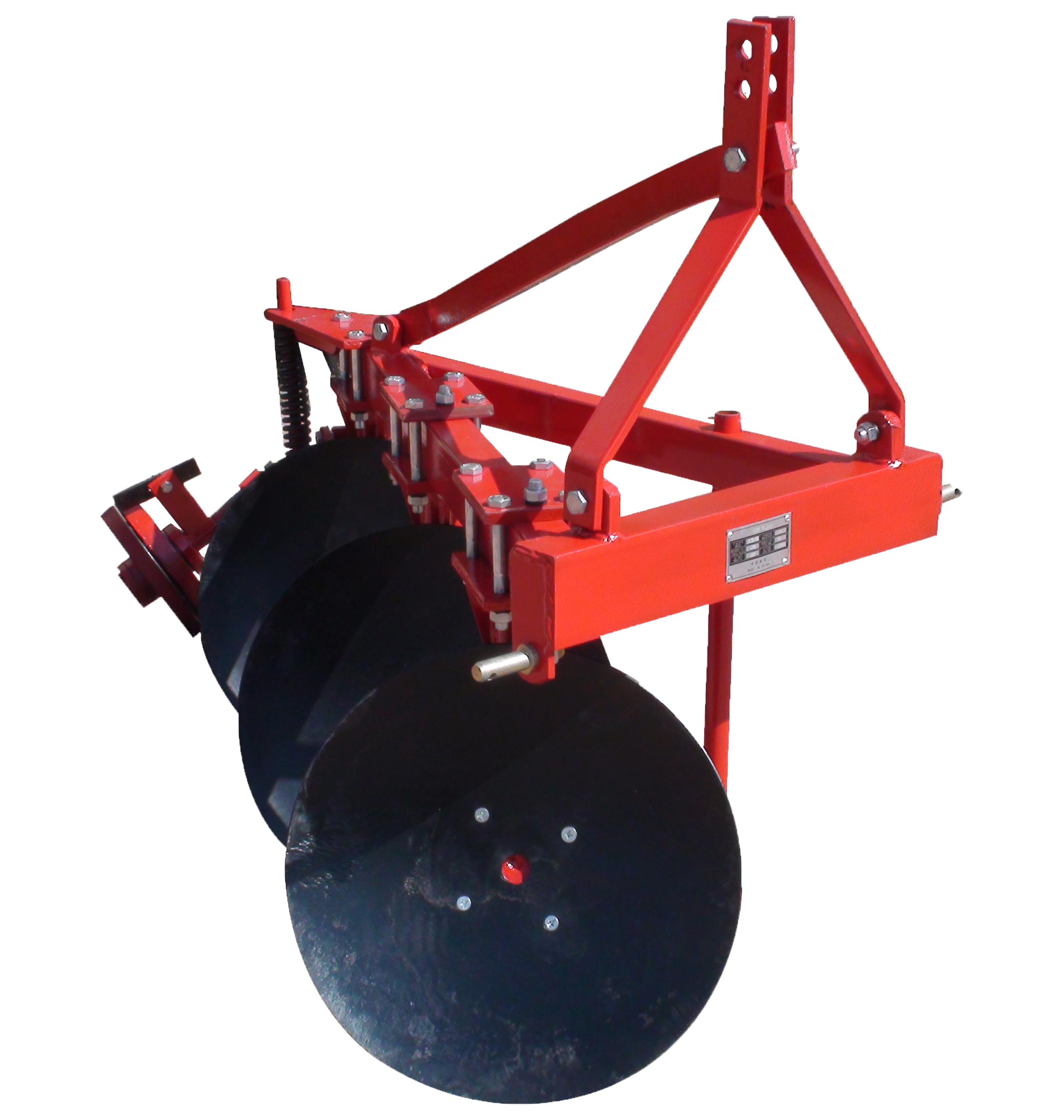

| Mounted plough or 1LYQ disc plough | 3 furrows, or 3-disc 1LYQ | Keep total mounted weight under about 900 kg |
| Disc harrow | 20-24 discs, 2.0-2.2 m | Trailed units suit the 30 km/h transport gear |
| Front-end loader | 1.6-1.8 m bucket, 1.2-1.5 t lift | Fit 300-400 kg front ballast plus rear wheel weights |
| Small square baler | for example the CLAAS Markant 55 or 65 | About 30 kW PTO draw, well inside the 46-48 kW margin |
| Braked trailer | 5-7 t | Check the brake coupling against local road rules |
Pre-Shipment Checklist for a Used New Holland 754 Tractor
Importers who buy on photographs alone end up with rebuild projects. Run through these seven checks before the container is loaded:
+86 13013532997 Gavin@gamagr.com
- Cold start and blow-by: a healthy SNH4102Z fires in 3-5 seconds above 10 °C; steady fog from the breather means ring and liner wear.
- PTO check: verify 783 rpm with a tachometer. More than a 5% drop under load means a tired clutch pack.
- Lift test: hang 900 kg on the lower links. It should rise without hunting and drift less than 30 mm in 10 minutes.
- Gearbox: engage all 10 forward and 2 reverse gears; jumping out under load is an expensive repair.
- Front axle: check 4WD engagement, hub oil seals and bevel backlash - the usual wear points.
- Hours versus cosmetics: SNH units commonly run 3,000-6,000 hours. A repainted machine showing 1,200 hours needs scrutiny.
- Paperwork: bill of sale, packing list and a photo of the SNH754 serial plate matching the invoice.
FAQ
How many horsepower is a used New Holland 754 tractor?
The SNH754 is rated at 55.1 kW, which is 74-75 HP at the flywheel and about 62-64 HP at the PTO. That is enough for a 2.0 m tiller, a 3-furrow plough and most loader work on mixed farms.
Can a used New Holland 754 tractor run a front loader?
Yes. With 16 kN of rear lift and a 10+2 gearbox it handles a 1.6-1.8 m bucket rated at 1.2-1.5 t, provided you add 300-400 kg of front ballast. Also confirm the loader frame bolts to the SNH754 chassis mounting points rather than being welded to body panels.
Source Used New Holland 754 Tractors from Linyi Gama Machinery
Linyi Gama Machinery Co., Ltd exports used tractors and matched implements from Linyi City, Shandong Province, China, and keeps SNH754 units in stock with inspection reports, loading photographs and container consolidation for mixed orders. If a used New Holland 754 tractor fits your fleet plan - or you want one shipped alongside a 70 HP SNH704 or an 80 HP SNH804B in the same 40 ft container - contact Gavin at Gavin@gamagr.com or by phone and WhatsApp on +86 13013532997 for current stock, FOB Qingdao pricing and a full specification sheet.
